Installation Guide: CData MCP Servers (Google Sheets)

Model Context Protocol (MCP) is an emerging, open-source standard for connecting LLMs with external services and data sources. Through MCP Servers, AI clients can perform actions like opening Jira tickets, posting Slack messages, committing GitHub branches and more. With CData MCP Servers, these capabilities expand exponentially.

In this article, we guide the reader through installing the CData MCP Server for Google Sheets, configuring the connection to Google Sheets, and asking questions of the data in Claude Desktop.

NOTE: This article focuses on the CData MCP Server for Google Sheets, but the principles apply to any of our MCP Servers.

Prerequisites

You need to download or configure the following accounts and applications to follow along with this installation guide:

• Claude Desktop (download)
• A Google account (if you do not have one, create one here)
• A Google Sheet with data (save a copy of our sample CRM sheet to your Google account)

Overview

Here's a quick overview of the steps:

1. Download and install the CData MCP Server for Google Sheets
2. Configure the connection to Google Sheets
3. Ask questions about the data in Claude Desktop

Step 1: Download and install the CData MCP Server

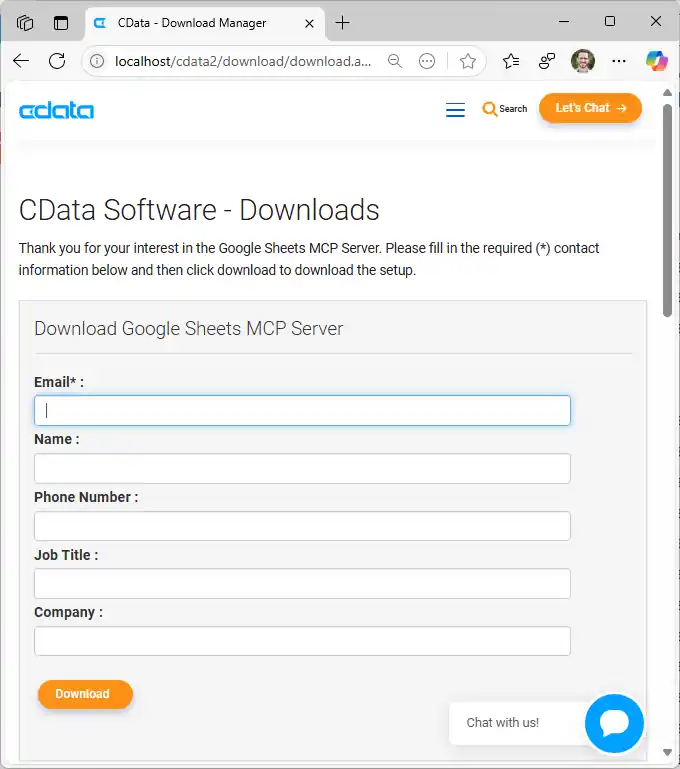

1. To begin, navigate to https://www.cdata.com/solutions/mcp and download the CData MCP Server for Google Sheets (direct link).
2. Find and double-click the installer to begin the installation.
3. Follow the prompts to complete the installation.

When the installation is complete, you are ready to configure your MCP Server by connecting to Google Sheets.

Step 2: Configure the connection to Google Sheets

1. After installation, the CData MCP Server configuration wizard should open automatically.

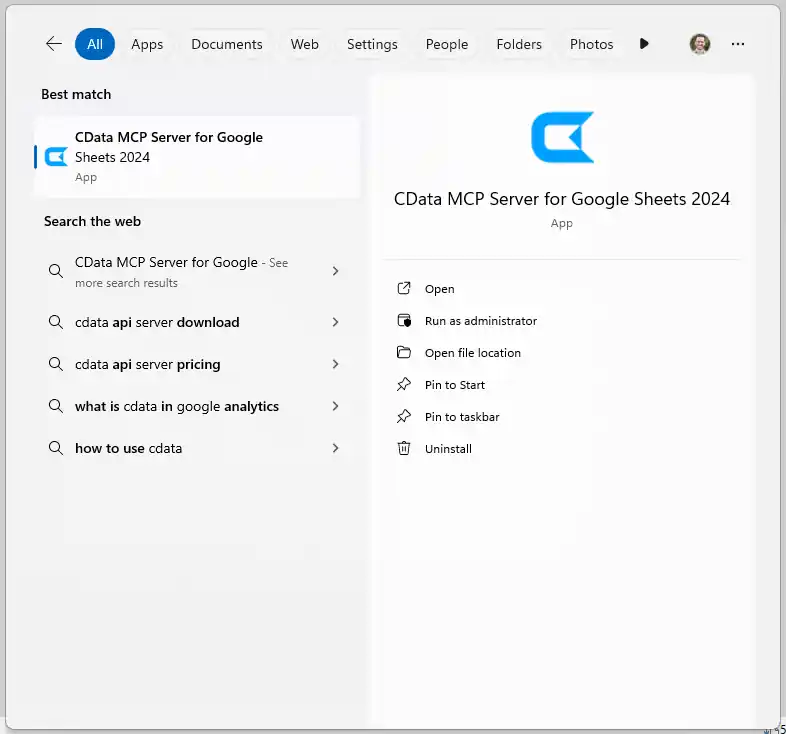

   NOTE: If the wizard does not open automatically, search for "CData MCP Server" in the Windows search bar and double-click the application.

2. Click the dropdown menu in MCP Configuration > Configuration Name and select "<new configuration...>"
3. Name the configuration (e.g. "cdatagsheets") and click "OK."

   NOTE: This name is used as the name for the MCP server and as the prefix for all of the MCP Server's tools.


4. The CData MCP Server for Google Sheets is pre-configured to authenticate directly with Google, so you should only need to set the Spreadsheet property. If you copied our sample CRM sheet, set the Spreadsheet property to "CRM Data" (or the name you used when you saved the copy). If you did NOT copy our sample CRM sheet, set the Spreadsheet property to the name of another Spreadsheet in your Google account.

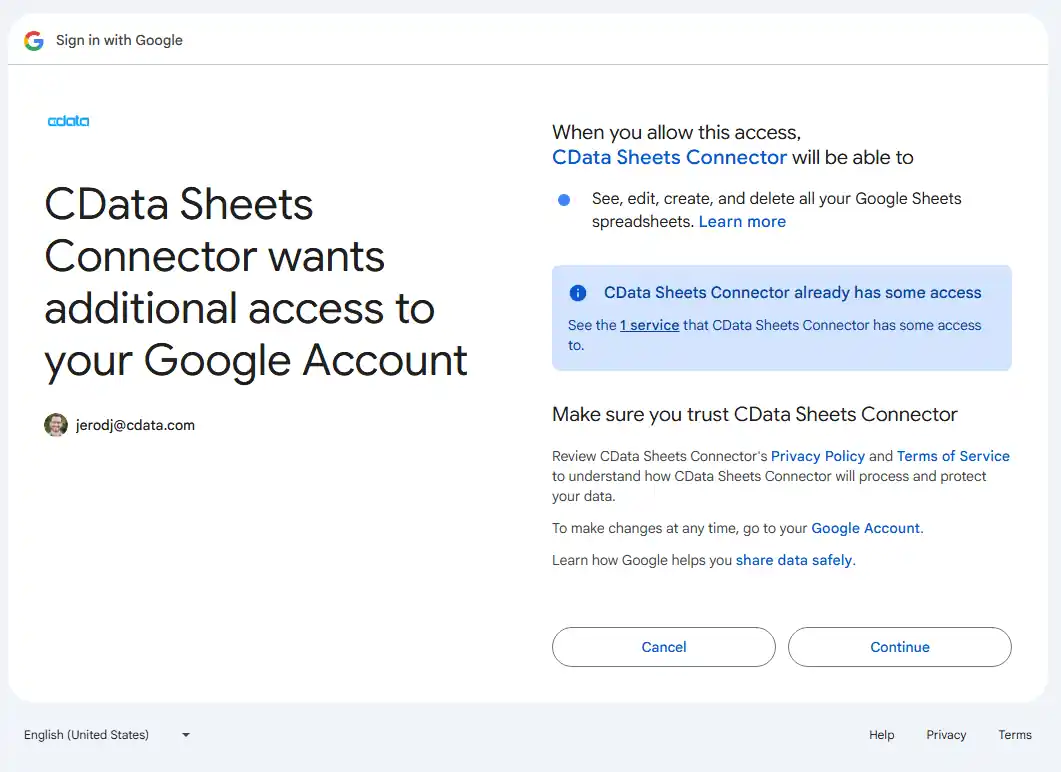

5. Click "Connect" to authenticate with Google through OAuth.

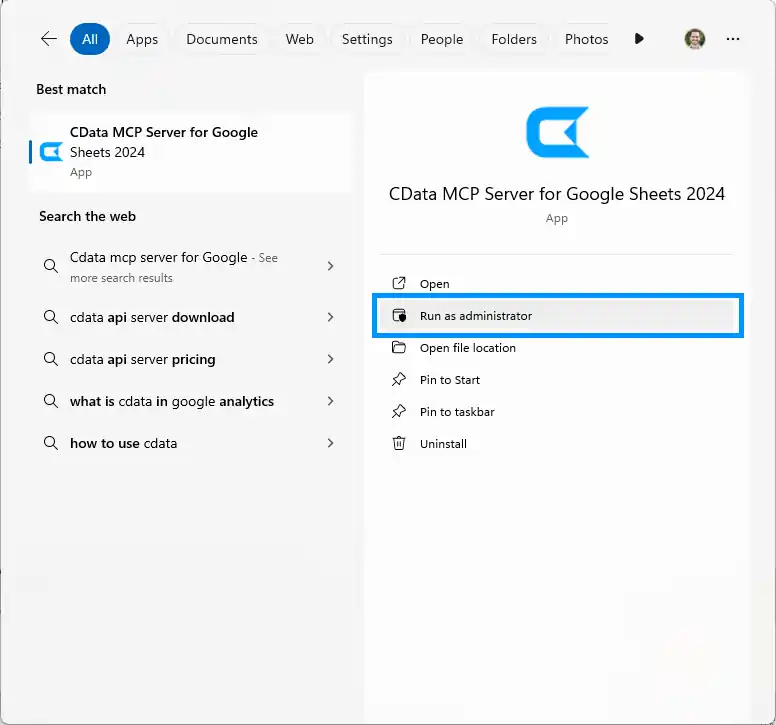

   NOTE: The configuration wizard should open your browser and ask you to sign into Google. If your browser does not open, close the configuration wizard and re-open the application using "Run as Administrator" (see below).


6. Finally, click "Save Configuration" to save the MCP server.

   NOTE: This saves the configuration details to a separate file and updates the Claude Desktop configuration file (claude_desktop_config.json) to start the CData MCP Server when the Claude Desktop client starts.

With the CData MCP Server configured, you are ready to start asking questions of your live data from Claude.

Step 3: Ask AI for answers from live Google Sheets data

Now that we have installed the CData MCP Server and configured a connection, we are ready to start with Google Sheets data in Claude Desktop.

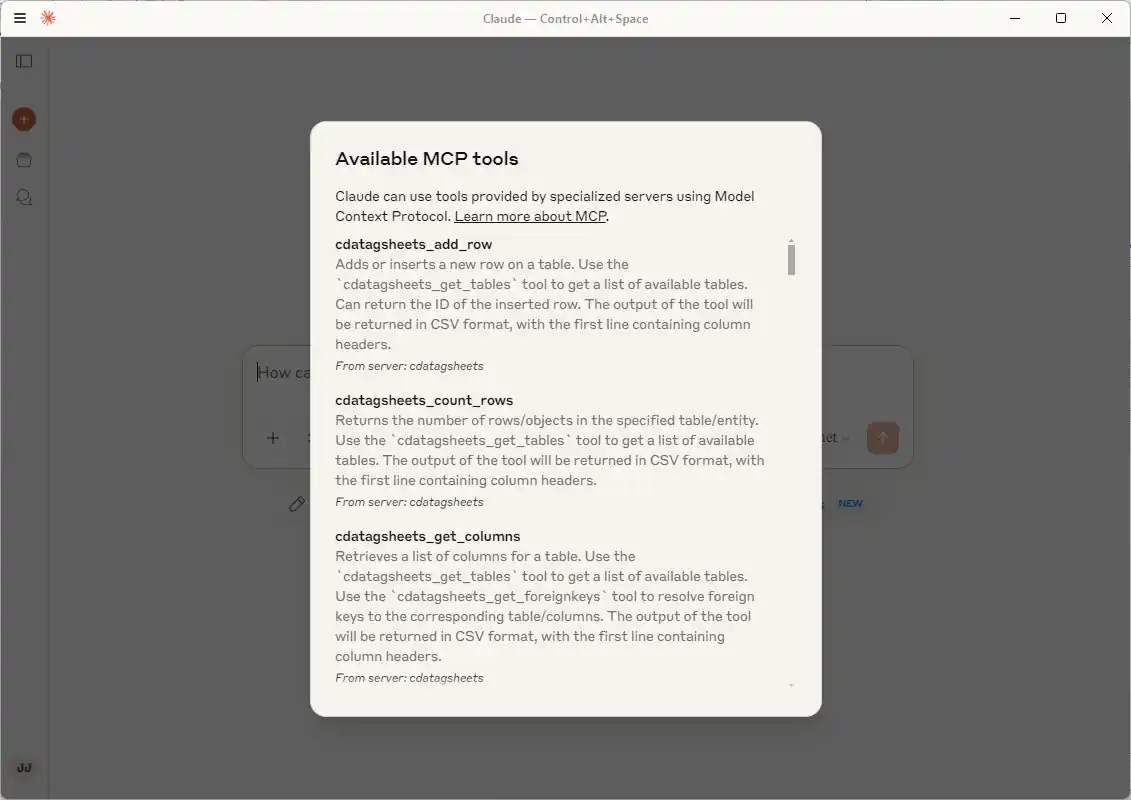

1. Open Claude Desktop. It may take a moment for the MCP Servers to start, but you will see the list of tools available in the Claude interface (look for the hammer icon below the prompt bar).

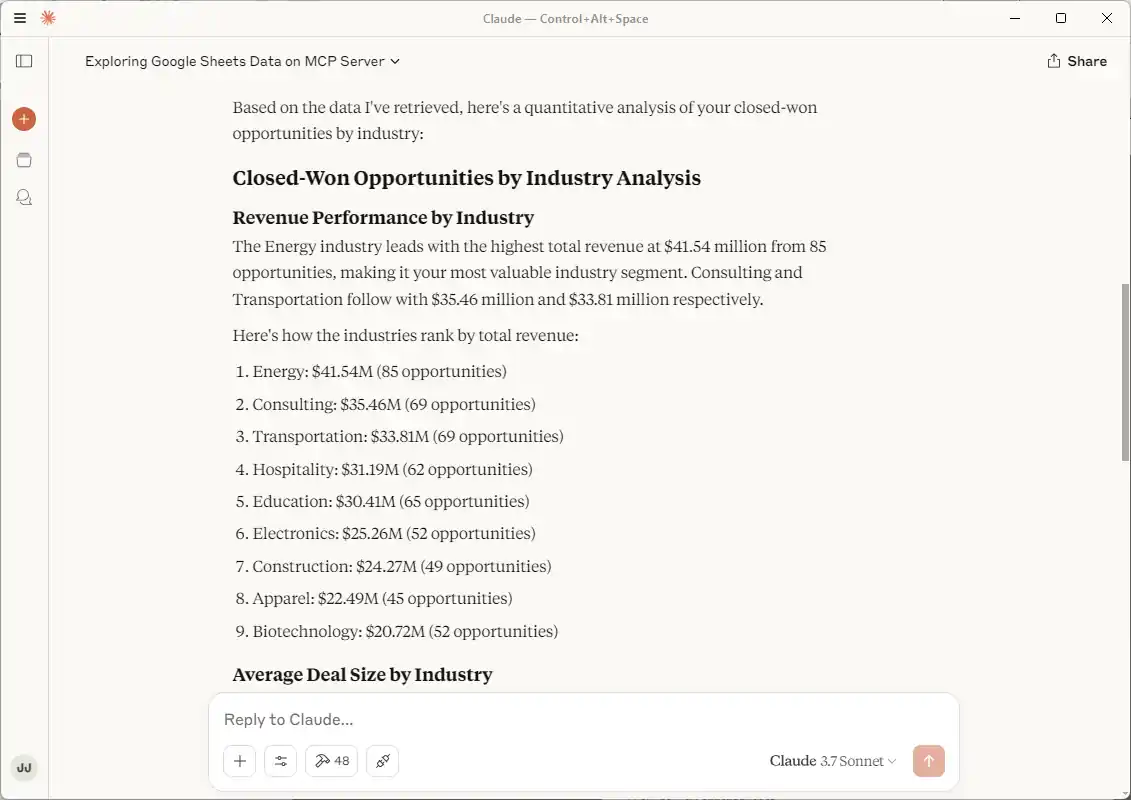

2. The sample sheet contains mock CRM data consisting of a list of accounts and related opportunities. Now that you have connected, you can ask Claude questions about the data. For example: "Can you give me a quantitative analysis about my closed-won opportunities by industry?"

   NOTE: Claude may need to explore the Google Sheets data to make sense of it before it can begin answering questions of the data. The tabular model presented by CData alongside the database tools available simplify the data exploration and analysis for an LLM.
