Connect to Live GMO MakeShop Data in MicroStrategy through CData Connect Cloud

MicroStrategy is an analytics and mobility platform that enables data-driven innovation. When you pair MicroStrategy with CData Connect Cloud, you gain database-like access to live GMO MakeShop data from MicroStrategy, expanding your reporting and analytics capabilities. In this article, we walk through connecting to GMO MakeShop in Connect Cloud and connecting to Connect Cloud in MicroStrategy to create a simple visualization of GMO MakeShop data.

As a cloud-based integration platform, Connect Cloud is ideal for working with cloud-based BI and analytics tools. With no servers to configure or data proxies to set up, you can simply use the web-based UI to create a live connection to GMO MakeShop and connect from MicroStrategy to start performing analytics based on live GMO MakeShop data.

Configure GMO MakeShop Connectivity for Microstrategy

Connectivity to GMO MakeShop from Microstrategy is made possible through CData Connect Cloud. To work with GMO MakeShop data from Microstrategy, we start by creating and configuring a GMO MakeShop connection.

1. Log into Connect Cloud, click Connections and click Add Connection
2. Select "GMO MakeShop" from the Add Connection panel
3. Enter the necessary authentication properties to connect to GMO MakeShop.

   Configuring Access to GMO MakeShop

   GMO MakeShop requires AccessCode for each API. To obtain MembersAccessCode, OrdersAccessCode, ProductsAccessCode, and ShopId, follow the steps below:

   • Log in to the GMO MakeShop Store Manager and click Create Shop.
   • Click any target connection setting from External System Connection in the left-hand navigation menu. If you cannot find it in the menu, please contact GMO Makeshop.
   • Product Data Connection Settings: Click Issue to retrieve the authentication code and ProductsAccessCode.
   • Order Data Connection Settings: First select Get Order Information > Change Order Information settings. Then click Issue to retrieve the authentication code and OrdersAccessCode.
   • Members Data Connection Settings: Select Get/Post/Update/Delete Members Information settings. Then click Issue to retrieve the authentication code and MembersAccessCode.
   < li>Members Authentication Connection Settings: Click Issue to retrieve the authentication code and ProductsAccessCode.

   Authenticating to GMO MakeShop Account

   Set the following connection properties to connect:

   • ShopId: Set the GMO MakeShop Store ID of the connection destination. The GMO MakeShop Store ID is the same as the ID for login.
   • OrdersAccessCode: Set the orders access code retrieved from Order Data Connection Settings. This property is required to access the Orders table.
   • ProductsAccessCode: Set the products access code retrieved from Product Data Connection Settings. This property is required to access the Products table.
   • MembersAccessCode: Set the members access code retrieved from Members Data Connection Settings. This property is required to access the Members table.
   • MemberAuthenticationCode: Set the member authentication code retrieved from Members Authentication Connection Settings. This property is required to execute MemberAuthenticationConfirm.
   • Password: Specify the password for the GMO MakeShop Store Manager login user. This property is required to execute ProductCategoryRegistrationOrModification, ProductMemberGroupPriceRegistrationOrModification, ProductOptionRegistrationOrModification, and ProductRegistrationOrModification.

4. Click Create & Test
5. Navigate to the Permissions tab in the Add GMO MakeShop Connection page and update the User-based permissions.

Add a Personal Access Token

If you are connecting from a service, application, platform, or framework that does not support OAuth authentication, you can create a Personal Access Token (PAT) to use for authentication. Best practices would dictate that you create a separate PAT for each service, to maintain granularity of access.

1. Click on your username at the top right of the Connect Cloud app and click User Profile.
2. Oa the User Profile page, scroll down to the Personal Access Tokens section and click Create PAT.
3. Give your PAT a name and click Create.
4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use.

With the connection configured, you are ready to connect to GMO MakeShop data from MicroStrategy.

Connect to and Visualize GMO MakeShop Data Using MicroStrategy

You can connect to GMO MakeShop in MicroStrategy by adding a data source based on the native SQL Server functionality. Once you have created a data source, you can build dynamic visualizations of GMO MakeShop data in MicroStrategy.

1. Open MicroStrategy and select your account.
2. Click Add External Data, select Databases, and use Select Tables as the Import Option.
3. In the Import from Tables wizard, click to add a new Data Source.
4. Select "SQL Server" in the Database menu and select "SQL Server 2017" in the Version menu.

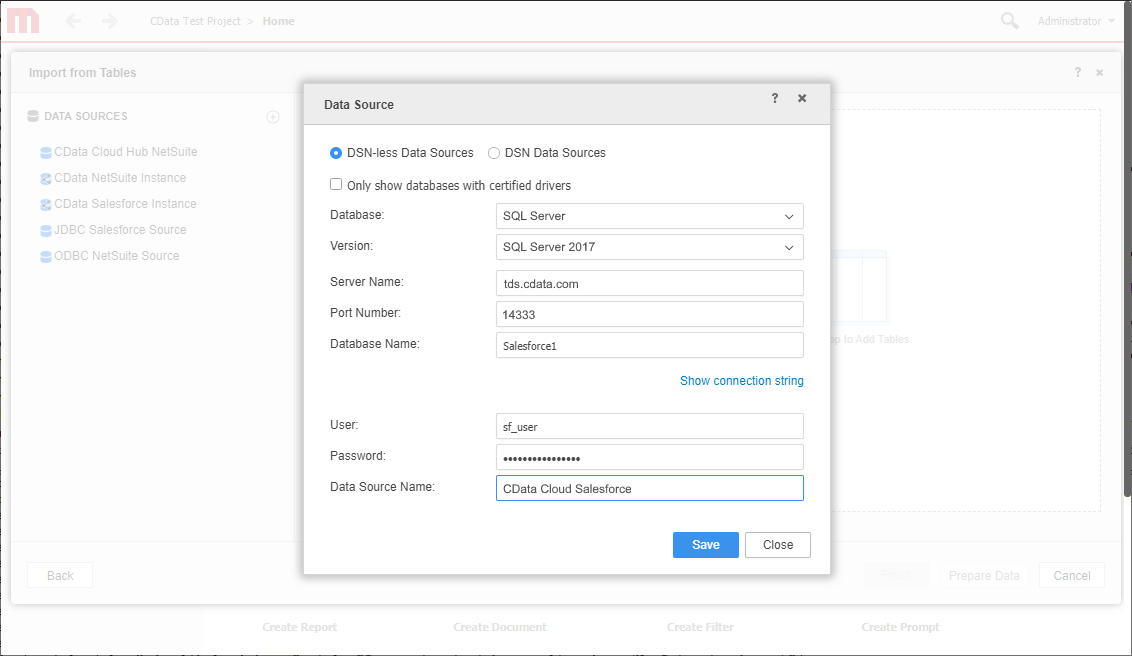

5. Sat the connection properties as follows:
   • Server Name: tds.cdata.com
   • Port Number: 14333
   • Database Name: the name of your GMO MakeShop connection (e.g. GMOMakeShop1)
   • User: a Connect Cloud user
   • Password: the PAT for your Connect Cloud user
   • Data Source Name: a name for the new external data source, like "CData Cloud GMO MakeShop"

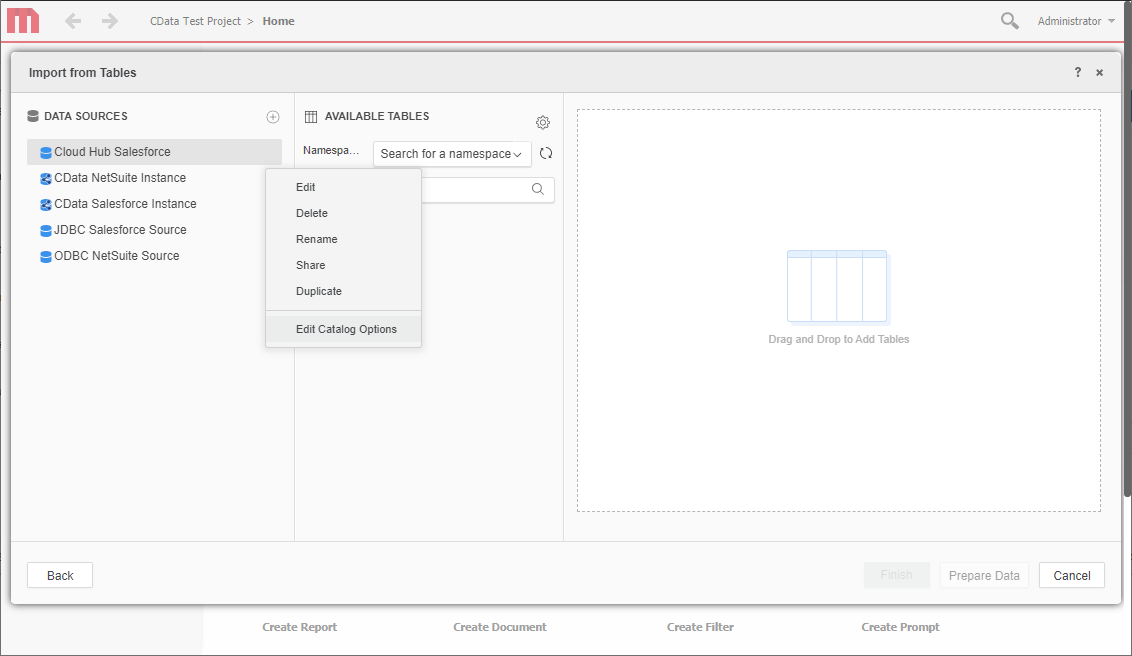

6. Expand the menu for the new data source and choose "Edit Catalog Options"
7. Edit the "SQL statement retrieve columns ..." query to include TABLE_SCHEMA = '#?Schema_Name?#' in the WHERE clause, and click Apply and then OK (the complete query is below).



   SELECT DISTINCT
     TABLE_SCHEMA NAME_SPACE,
     TABLE_NAME TAB_NAME,
     COLUMN_NAME COL_NAME,
     (CASE
       WHEN
         (DATA_TYPE LIKE '%char' AND (CHARACTER_SET_NAME='utf8' OR CHARACTER_SET_NAME='usc2'))
       THEN
         CONCAT('a',DATA_TYPE)
       ELSE
         DATA_TYPE
     END) DATA_TYPE,
     CHARACTER_MAXIMUM_LENGTH DATA_LEN,
     NUMERIC_PRECISION DATA_PREC,
     NUMERIC_SCALE DATA_SCALE
   FROM
     INFORMATION_SCHEMA.COLUMNS
   WHERE
     TABLE_NAME
   IN
     (#TABLE_LIST#) AND TABLE_SCHEMA='#?Schema_Name?#'
   ORDER BY
     1,2,3

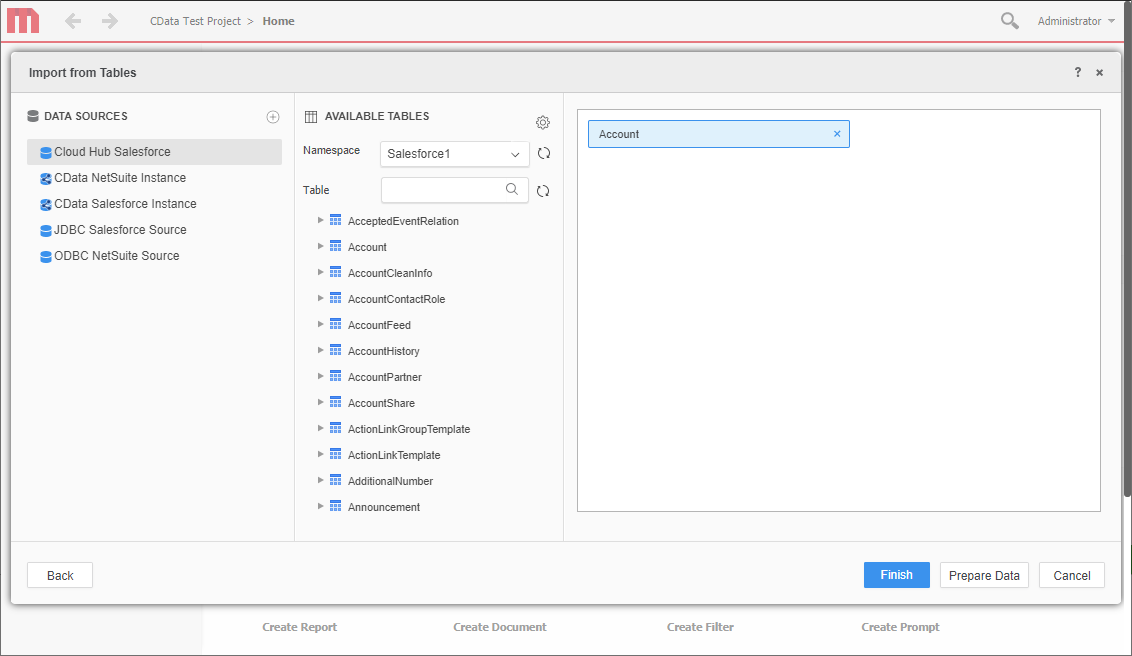

8. Select the new data source and select the Namespace that corresponds to your virtual GMO MakeShop database (like GMOMakeShop1).
9. Drag tables into the pane to insert then. Note: Since we create a live connection, we can insert whole tables and utilize the filtering and aggregation features native to the MicroStrategy products to customize our datasets.

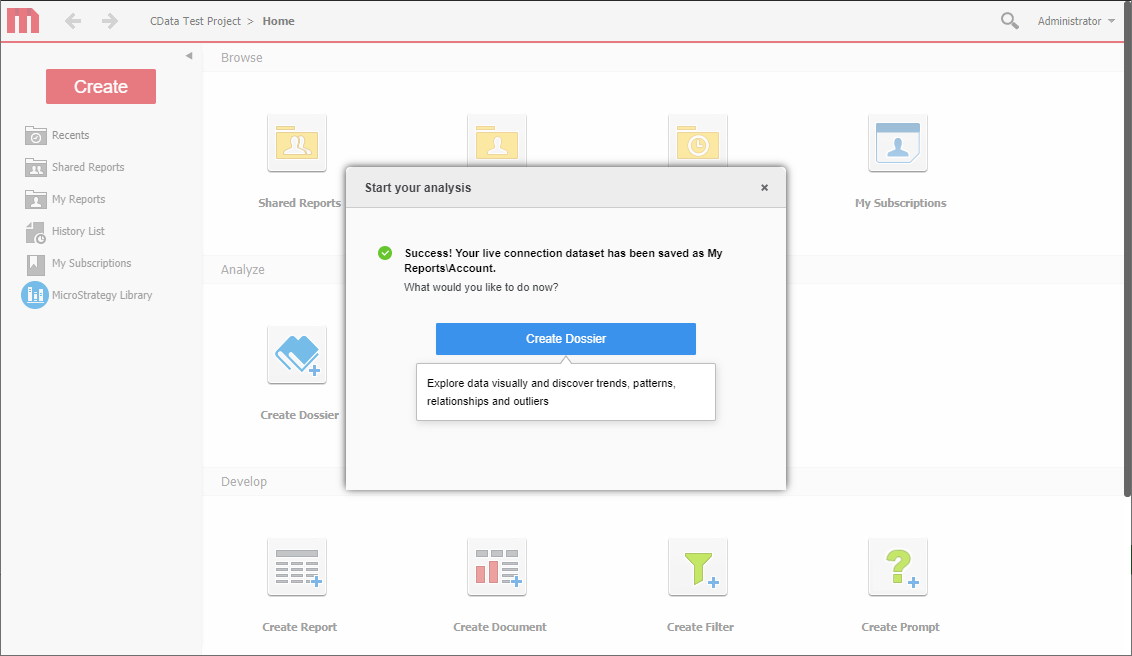

10. Click Finish, choose the option to connect live, save the query, and choose the option to create a new dossier. Live connections are possible and effective, thanks to high-performance data processing native to CData Connect Cloud.

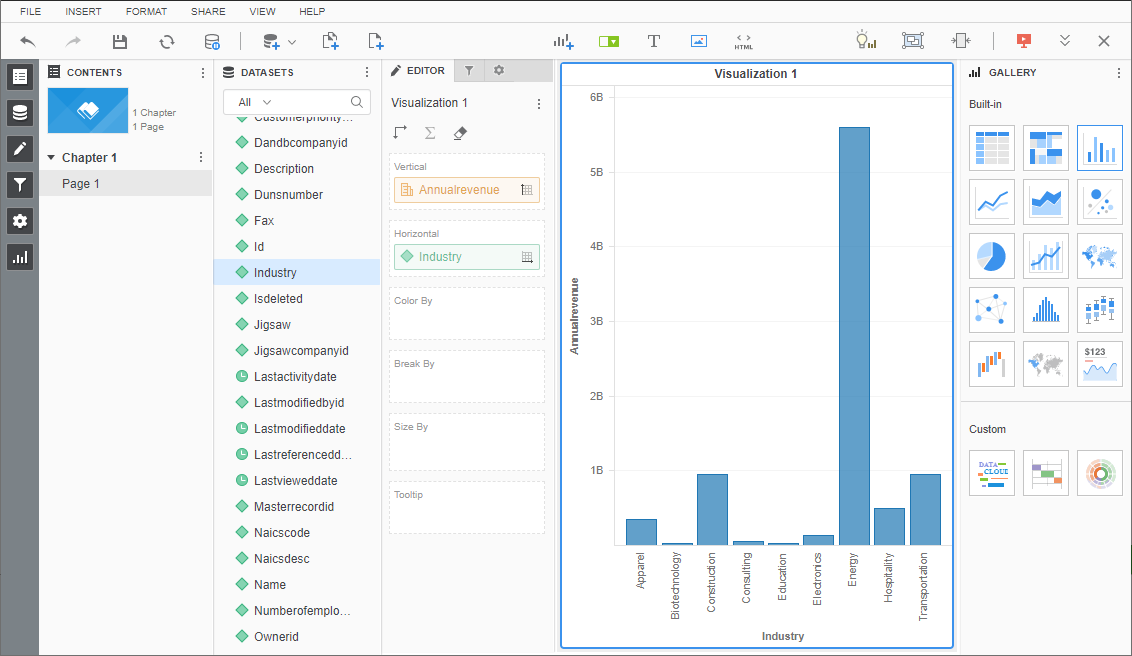

11. Choose a visualization, choose fields to display, and apply any filters to create a new visualization of GMO MakeShop data. Data types are discovered automatically through dynamic metadata discovery. Where possible, the complex queries generated by the filters and aggregations will be pushed down to GMO MakeShop, while any unsupported operations (which can include SQL functions and JOIN operations) will be managed by the CData SQL engine embedded in Connect Cloud.
12. Once you have finished configuring the dossier, click File -> Save.

Using CData Connect Cloud with MicroStrategy, you can easily create robust visualizations and reports on GMO MakeShop data. For more information on connecting to GMO MakeShop (and more than 100 other data sources), visit the Connect Cloud page. Sign up for a free trial and start working with live GMO MakeShop data in MicroStrategy.
