Visualize Paylocity Data in TIBCO Spotfire through OData

OData is a major protocol enabling real-time communication among cloud-based, mobile, and other online applications. The CData API Server, when paired with the ADO.NET Provider for Paylocity, provides Paylocity data (or data from 200+ other ADO.NET Providers) to OData consumers like TIBCO Spotfire. This article shows how to use the API Server and Spotfire's built-in support for OData to access Paylocity data in real time.

Set Up the API Server

Follow the steps below to begin producing secure Paylocity OData services:

Deploy

The API Server runs on your own server. On Windows, you can deploy using the stand-alone server or IIS. On a Java servlet container, drop in the API Server WAR file. See the help documentation for more information and how-tos.

The API Server is also easy to deploy on Microsoft Azure, Amazon EC2, and Heroku.

Connect to Paylocity

After you deploy the API Server and the ADO.NET Provider for Paylocity, provide authentication values and other connection properties needed to connect to Paylocity by clicking Settings -> Connections and adding a new connection in the API Server administration console.

Set the following to establish a connection to Paylocity:

• RSAPublicKey: Set this to the RSA Key associated with your Paylocity, if the RSA Encryption is enabled in the Paylocity account.

  This property is required for executing Insert and Update statements, and it is not required if the feature is disabled.

• UseSandbox: Set to true if you are using sandbox account.
• CustomFieldsCategory: Set this to the Customfields category. This is required when IncludeCustomFields is set to true. The default value for this property is PayrollAndHR.
• Key: The AES symmetric key(base 64 encoded) encrypted with the Paylocity Public Key. It is the key used to encrypt the content.

  Paylocity will decrypt the AES key using RSA decryption.
  It is an optional property if the IV value not provided, The driver will generate a key internally.

• IV: The AES IV (base 64 encoded) used when encrypting the content. It is an optional property if the Key value not provided, The driver will generate an IV internally.

Connect Using OAuth Authentication

You must use OAuth to authenticate with Paylocity. OAuth requires the authenticating user to interact with Paylocity using the browser. For more information, refer to the OAuth section in the Help documentation.

The Pay Entry API

The Pay Entry API is completely separate from the rest of the Paylocity API. It uses a separate Client ID and Secret, and must be explicitly requested from Paylocity for access to be granted for an account. The Pay Entry API allows you to automatically submit payroll information for individual employees, and little else. Due to the extremely limited nature of what is offered by the Pay Entry API, we have elected not to give it a separate schema, but it may be enabled via the UsePayEntryAPI connection property.

Please be aware that when setting UsePayEntryAPI to true, you may only use the CreatePayEntryImportBatch & MergePayEntryImportBatchgtable stored procedures, the InputTimeEntry table, and the OAuth stored procedures. Attempts to use other features of the product will result in an error. You must also store your OAuthAccessToken separately, which often means setting a different OAuthSettingsLocation when using this connection property.

When you configure the connection, you may also want to set the Max Rows connection property. This will limit the number of rows returned, which is especially helpful for improving performance when designing reports and visualizations.

You can then choose the Paylocity entities you want to allow the API Server access to by clicking Settings -> Resources.

Authorize API Server Users

After determining the OData services you want to produce, authorize users by clicking Settings -> Users. The API Server uses authtoken-based authentication and supports the major authentication schemes. Access can also be restricted based on IP address; by default only connections to the local machine are allowed. You can authenticate as well as encrypt connections with SSL.

Create Data Visualizations on External Paylocity Data

1. Open Spotfire and click Add Data Tables -> OData.

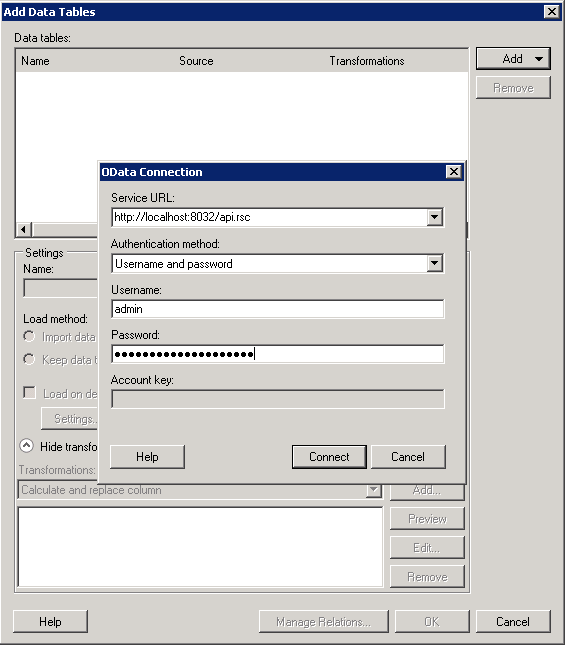

2. In the OData Connection dialog, enter the following information:
   • Service URL: Enter the API Server's OData endpoint. For example: http://localhost:8032/api.rsc
   • Authentication Method: Select Username and Password.
   • Username: Enter the username of an API Server user. You can create API users on the Security tab of the administration console.
   • Password: Enter the authtoken of an API Server user.

3. Select the tables and columns you want to add to the dashboard. This example uses Employee.
4. If you want to work with the live data, click the Keep Data Table External option. This option enables your dashboards to reflect changes to the data in real time.

   If you want to load the data into memory and process the data locally, click the Import Data Table option. This option is better for offline use or if a slow network connection is making your dashboard less interactive.

5. After adding tables, the Recommended Visualizations wizard is displayed. When you select a table, Spotfire uses the column data types to detect number, time, and category columns. This example uses LastName in the Numbers section and FirstName in the Categories section.

After adding several visualizations in the Recommended Visualizations wizard, you can make other modifications to the dashboard. For example, you can apply a filter: After clicking the Filter button, the available filters for each query are displayed in the Filters pane.
