Create SSAS Tabular Models from Salesforce Data Cloud Data

SQL Server Analysis Services (SSAS) is an analytical data engine used in decision support and business analytics. It provides enterprise-grade semantic data models for business reports and client applications, such as Power BI, Excel, Reporting Services reports, and other data visualization tools. When paired with the CData ODBC Driver for Salesforce Data Cloud, you can create a tabular model from Salesforce Data Cloud data for deeper and faster data analysis.

Create a Connection to Salesforce Data Cloud Data

If you have not already, first specify connection properties in an ODBC DSN (data source name). This is the last step of the driver installation. You can use the Microsoft ODBC Data Source Administrator to create and configure ODBC DSNs.

Salesforce Data Cloud supports authentication via the OAuth standard.

OAuth

Set AuthScheme to OAuth.

Desktop Applications

CData provides an embedded OAuth application that simplifies authentication at the desktop.

You can also authenticate from the desktop via a custom OAuth application, which you configure and register at the Salesforce Data Cloud console. For further information, see Creating a Custom OAuth App in the Help documentation.

Before you connect, set these properties:

• InitiateOAuth: GETANDREFRESH. You can use InitiateOAuth to avoid repeating the OAuth exchange and manually setting the OAuthAccessToken.
• OAuthClientId (custom applications only): The Client ID assigned when you registered your custom OAuth application.
• OAuthClientSecret (custom applications only): The Client Secret assigned when you registered your custom OAuth application.

When you connect, the driver opens Salesforce Data Cloud's OAuth endpoint in your default browser. Log in and grant permissions to the application.

The driver then completes the OAuth process as follows:

• Extracts the access token from the callback URL.
• Obtains a new access token when the old one expires.
• Saves OAuth values in OAuthSettingsLocation so that they persist across connections.

For other OAuth methods, including Web Applications and Headless Machines, refer to the Help documentation.

Creating a Data Source for Salesforce Data Cloud

Start by creating a new Analysis Services Tabular Project in Visual Studio. Next create a Data Source for Salesforce Data Cloud in the project.

1. In the Tabular Model Explorer, right-click Data Sources and select "New Data Source"

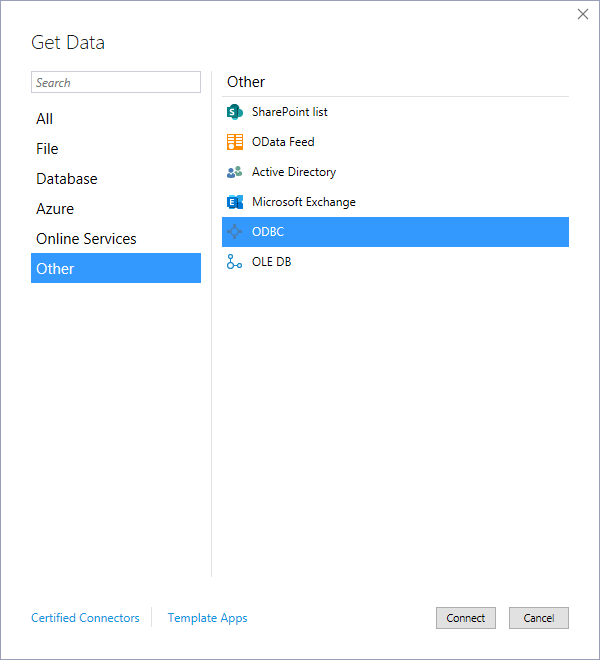

2. Select "ODBC" from the Other tab and click "Connect"

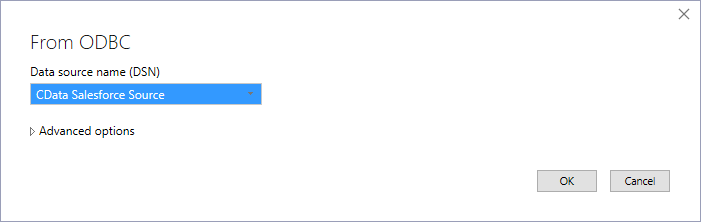

3. Select the DSN you previously configured

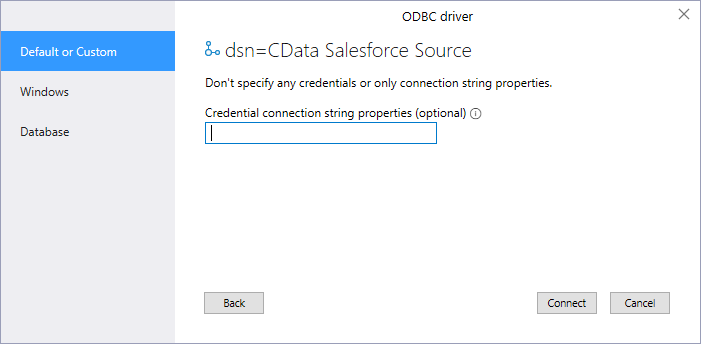

4. Choose "Default or Custom" as the authentication option and click "Connect"

Add Tables & Relationships

After creating the data source you are ready to import tables and define the relationships between the tables.

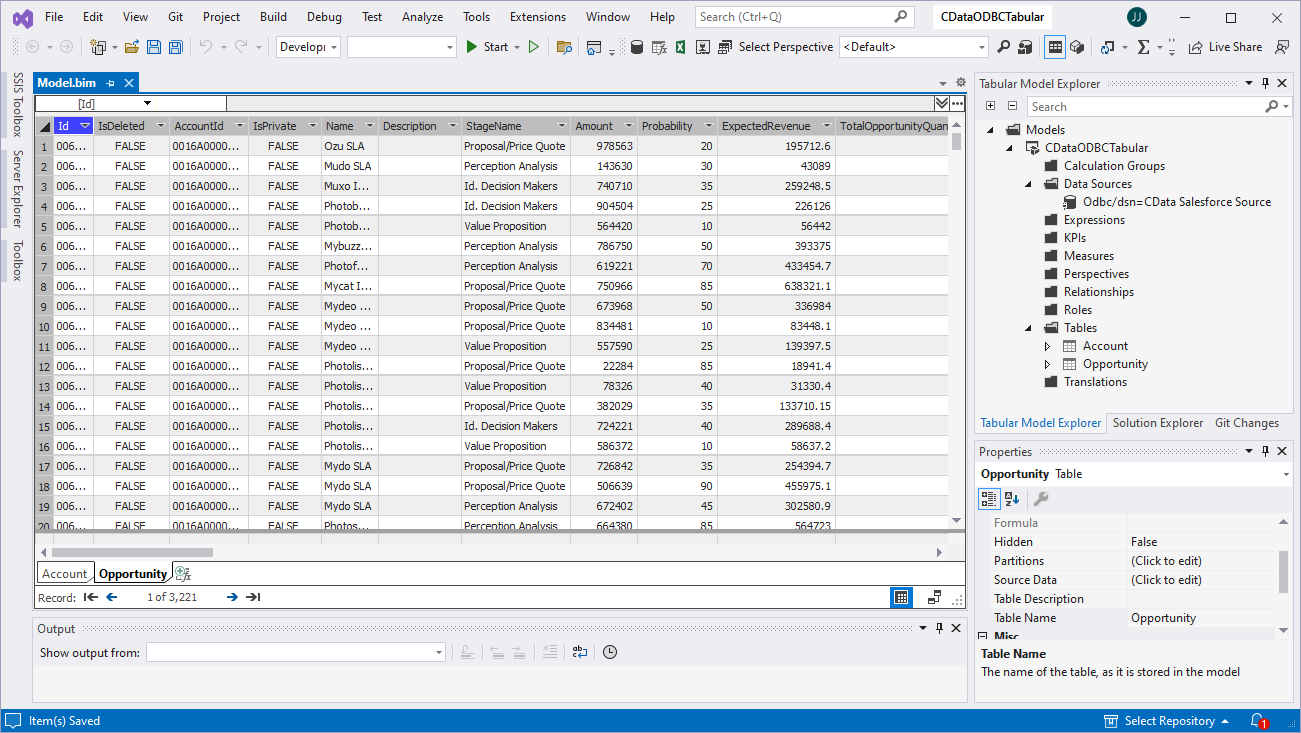

1. Right-click the new data source, click "Import New Tables" and select the tables to import

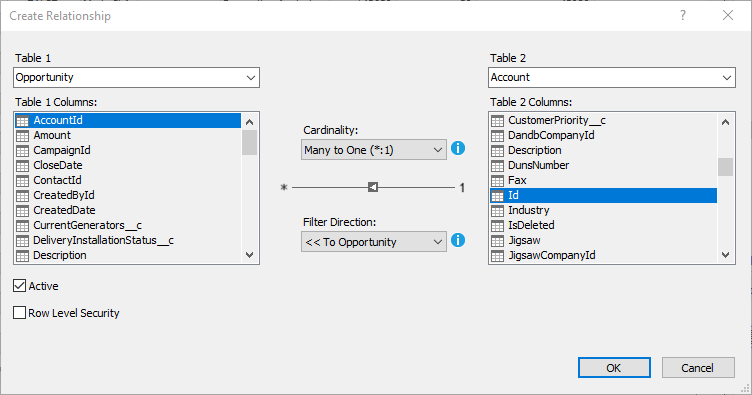

2. After importing the tables, right-click "Relationships" and click "Create Relationships"
3. Select table(s), and choose the foreign keys, cardinality, and filter direction

Create Measures

After importing the tables and defining the relationships, you are ready to create measures.

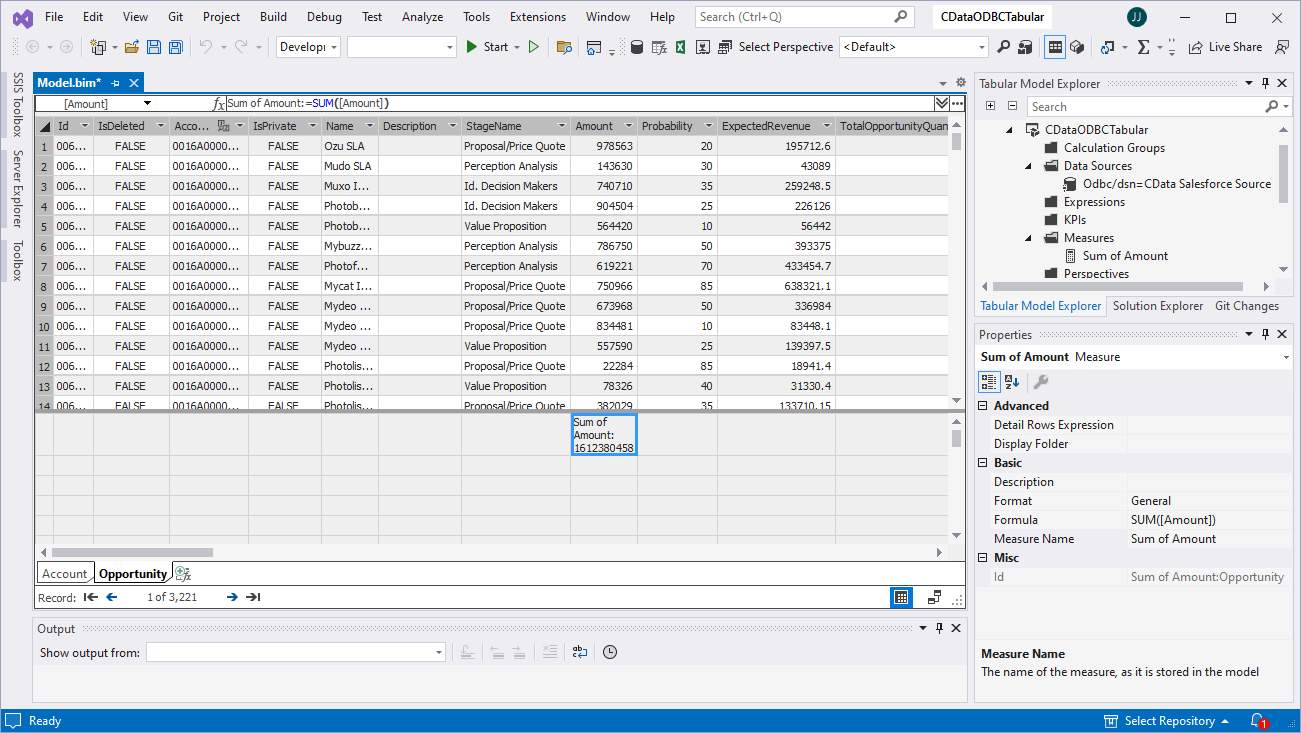

1. Select the column in the table for which you wish to create a measure
2. In the Extensions menu -> click "Columns" -> "AutoSum" and select your aggregation method

Deploy the Model

Once you create measures, you are ready to deploy the model. Configure the target server and database by right-clicking the project found in the Solution Explorer and selecting "Properties." Configure the "Deployment Server" properties and click "OK."



After configuring the deployment server, open the "Build" menu and click "Deploy Solution." You now have a tabular model for Salesforce Data Cloud data in your SSAS instance, ready to be analyzed, reported, and viewed. Get started with a free, 30-day trial of the CData ODBC Driver for Salesforce Data Cloud.
