Use CData Connect Cloud to Access SAP Ariba Procurement Data in Microsoft Power Pivot

This article will explain how to use CData Connect Cloud to present SAP Ariba Procurement data as OData services and then consume the data in Microsoft Excel's Power Pivot business intelligence tool. Follow the steps below to retrieve SAP Ariba Procurement data in Power Pivot.

Connect to SAP Ariba Procurement from Power Pivot

To work with SAP Ariba Procurement data from Power Pivot, we need to connect to SAP Ariba Procurement from Connect Cloud, provide user access to the connection, and create OData endpoints for the SAP Ariba Procurement data.

(Optional) Add a New Connect Cloud User

As needed, create Users to connect to SAP Ariba Procurement through Connect Cloud.

1. Navigate to the Users page and click Invite Users
2. Enter the new user's email address and click Send to invite the user
3. You can review and edit users from the Users page

Add a Personal Access Token

If you are connecting from a service, application, platform, or framework that does not support OAuth authentication, you can create a Personal Access Token (PAT) to use for authentication. Best practices would dictate that you create a separate PAT for each service, to maintain granularity of access.

1. Click on your username at the top right of the Connect Cloud app and click User Profile.
2. On the User Profile page, scroll down to the Personal Access Tokens section and click Create PAT.
3. Give your PAT a name and click Create.
4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use.

Connect to SAP Ariba Procurement from Connect Cloud

CData Connect Cloud uses a straightforward, point-and-click interface to connect to data sources.

1. Log into Connect Cloud, click Connections and click Add Connection
2. Select "SAP Ariba Procurement" from the Add Connection panel
3. Enter the necessary authentication properties to connect to SAP Ariba Procurement.

   In order to connect with SAP Ariba Procurement, set the following:

   • ANID: Your Ariba Network ID.
   • ANID: Specify which API you would like the provider to retrieve SAP Ariba data from. Select the Buyer or Supplier API based on your business role (possible values are PurchaseOrdersBuyerAPIV1 or PurchaseOrdersSupplierAPIV1).
   • Environment: Indicate whether you are connecting to a test or production environment (possible values are TEST or PRODUCTION).

   Authenticating with OAuth

   After setting connection properties, you need to configure OAuth connectivity to authenticate.

   • Set AuthScheme to OAuthClient.
   • Register an application with the service to obtain the APIKey, OAuthClientId and OAuthClientSecret.

     For more information on creating an OAuth application, refer to the Help documentation.

   Automatic OAuth

   After setting the following, you are ready to connect:

   APIKey: The Application key in your app settings. OAuthClientId: The OAuth Client Id in your app settings. OAuthClientSecret: The OAuth Secret in your app settings.

   When you connect, the provider automatically completes the OAuth process:

   1. The provider obtains an access token from SAP Ariba and uses it to request data.
   2. The provider refreshes the access token automatically when it expires.
   3. The OAuth values are saved in memory relative to the location specified in OAuthSettingsLocation.

4. Click Create & Test
5. Navigate to the Permissions tab in the Add SAP Ariba Procurement Connection page and update the User-based permissions.

Configure SAP Ariba Procurement Endpoints for Power Pivot

After connecting to SAP Ariba Procurement, create a workspace and virtual dataset for your desired table(s).

1. Navigate to the Virtual Datasets page and click Add to create a new Workspace (or select an existing workspace).
2. Click Add to add new assets to the Workspace.
3. Select the SAP Ariba Procurement connection (e.g. SAPAribaProcurement1) and click Next.
4. Select the table(s) you wish to work with and click Confirm.
5. Make note of the OData Service URL for your workspace, e.g. https://cloud.cdata.com/api/odata/{workspace_name}

With the connection and Workspace configured, you are ready to connect to SAP Ariba Procurement data from Power Pivot.

Import SAP Ariba Procurement Tables in Power Pivot

Follow the steps below to import tables that can be refreshed on demand:

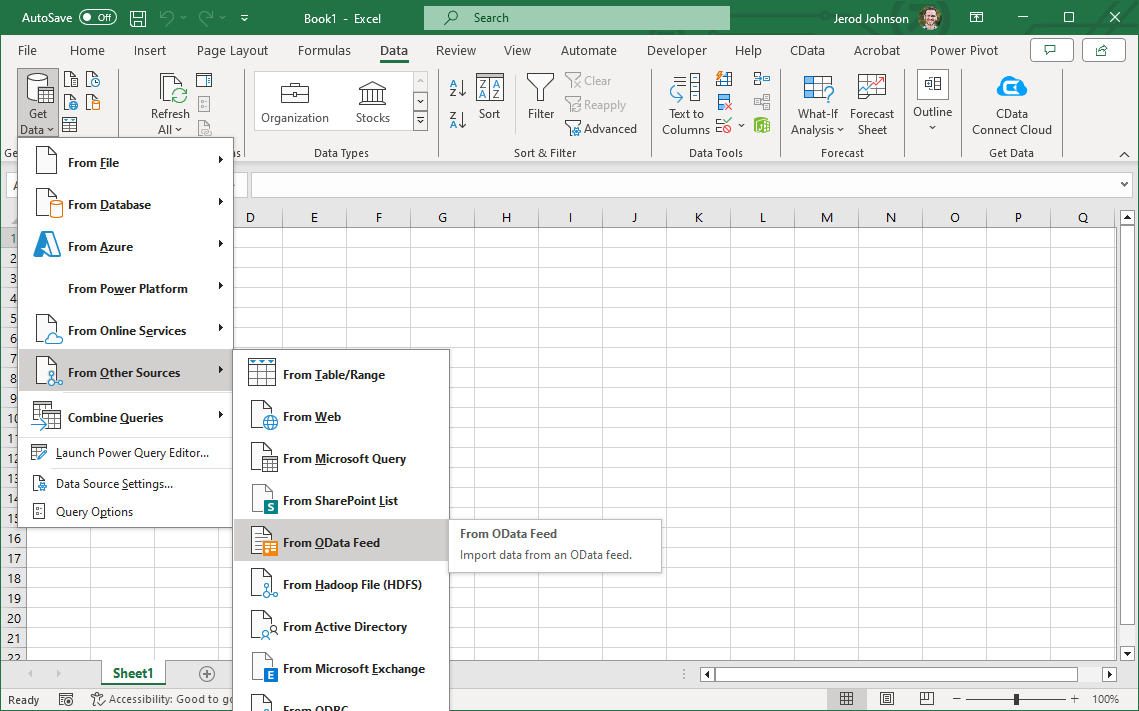

1. In Excel, click Data -> Get Data -> From Other Sources -> From OData Feed

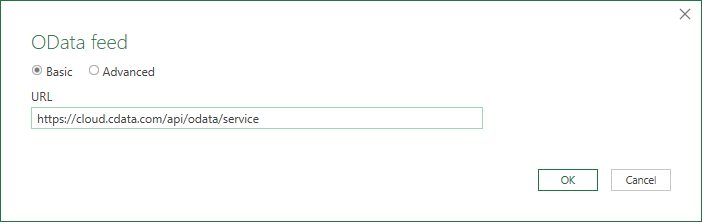

2. Fill out the OData feed URL (e.g. https://cloud.cdata.com/api/odata/{workspace_name})

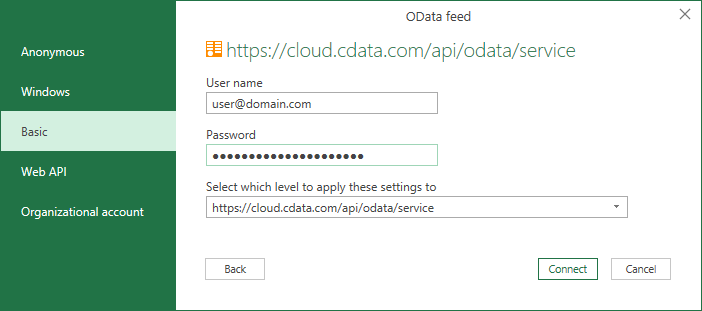

3. On the next screen, select Basic and configure the username and password. Password will be your PAT.

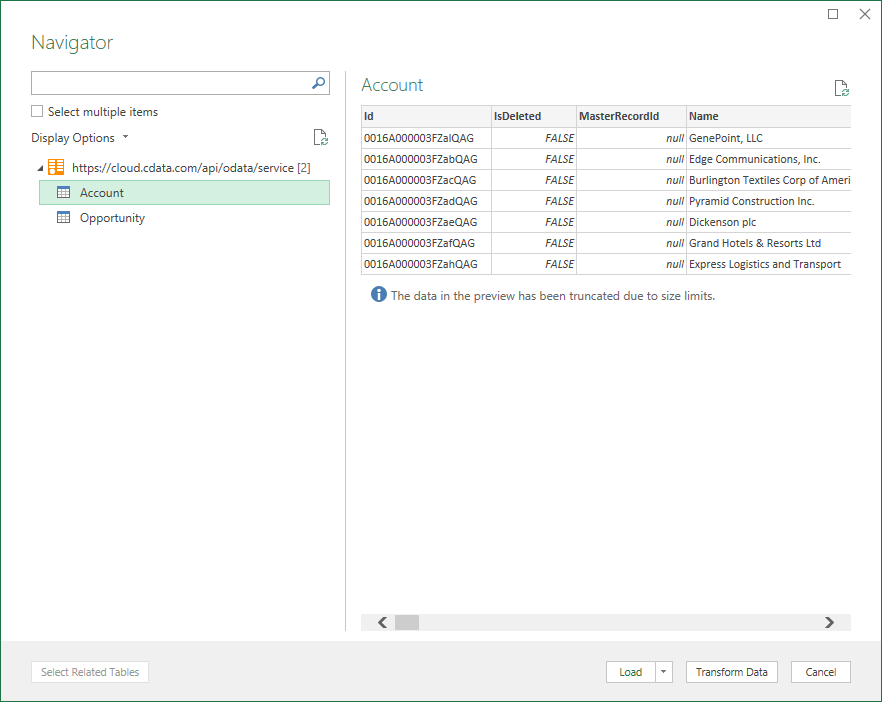

4. Select the tables that you would like to import into Excel

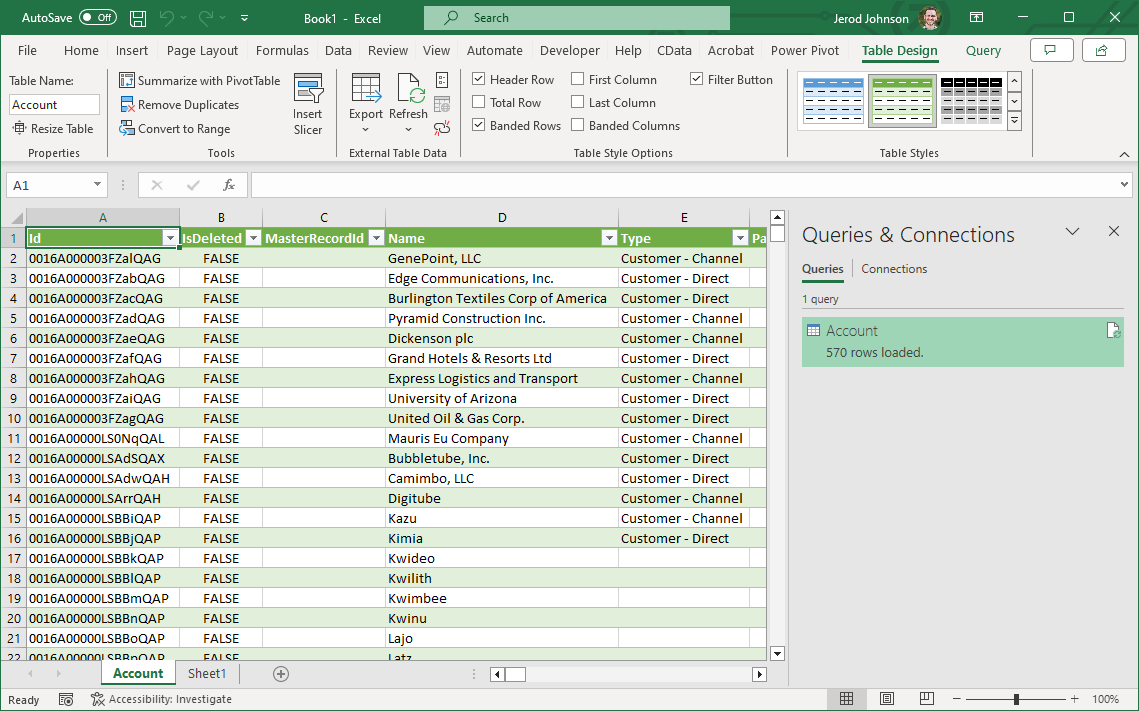

5. After selecting your table(s) and clicking Load, you should see the data appear in an Excel spreadsheet

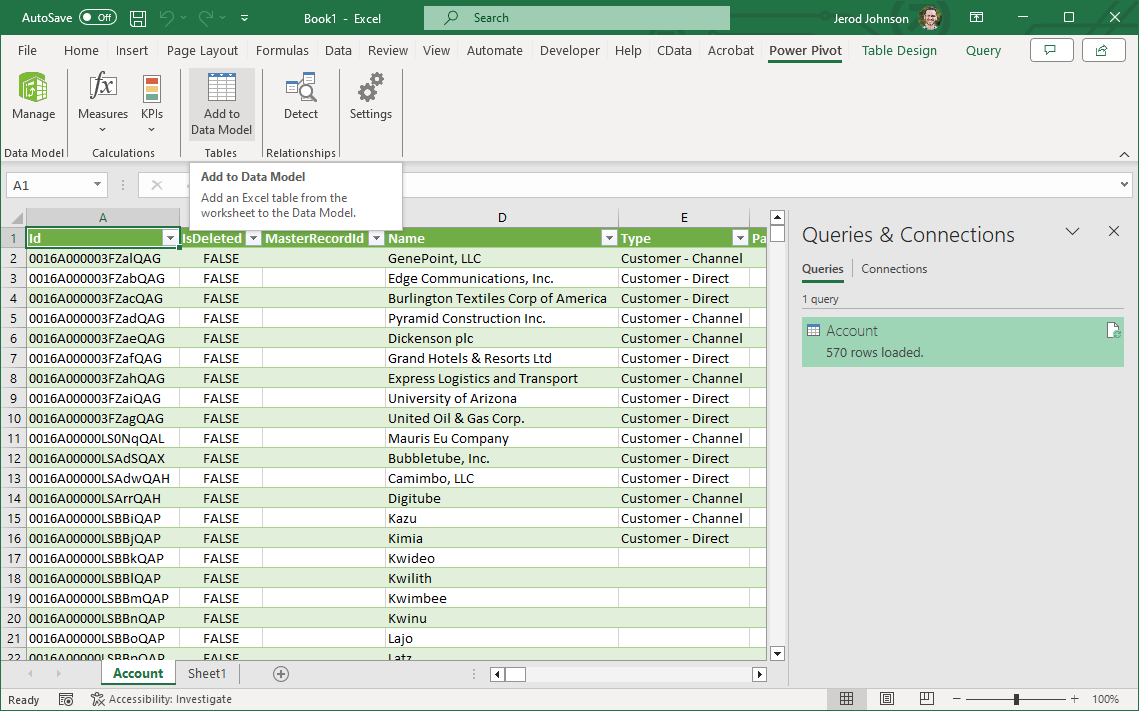

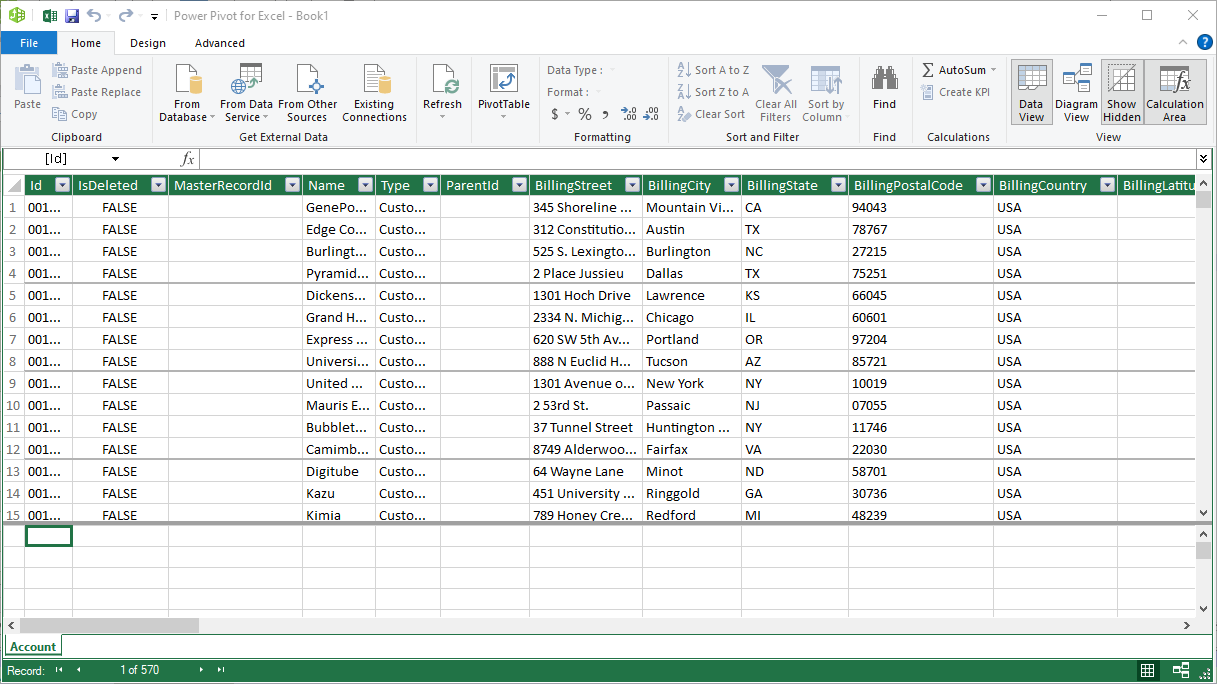

6. Now, click the Power Pivot tab on the ribbon, and then select Add to Data Model. This can now work with your SAP Ariba Procurement data in Power Pivot.
